The Ultimate High-Performance Machine

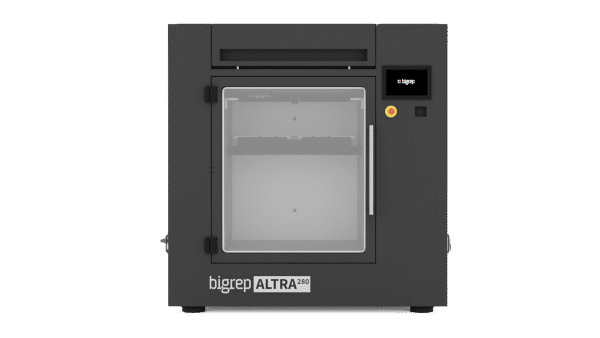

The ALTRA 280 is a high-performance industrial powerhouse featuring an expansive build volume and unmatched reliability.

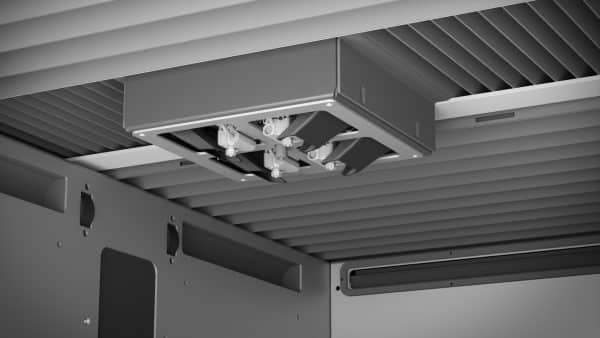

Equipped with up to four state-of-the-art DSX extruders, including controlled dual extruders and their respective backups, it sets a new standard in additive manufacturing. These advanced extruders ensure flawless prints every time.
With high-temperature capabilities, the ALTRA 280 excels in demanding applications across automotive, aerospace, and defense industries. It is a versatile, fast, reliable, and high-temperature industrial machine, delivering complex, production-quality parts without compromise.
Version | BigRep ALTRA 280 |
Build Volume | x 500 y 700 z 800 mm (x 19.7 y 27.6 z 31.5 in) |
Printing Technology | Fused-Filament-Fabrication (FFF / FDM) |
Compatible Materials | ABS, ABS-ESD, ABS-FR, ASA, HT-PETG, PA6, PA6-CF, PA12, PA12-CF , PA12-GF, PC, PC-ABS, PC-FR, PC-CF, PCTG, PEEK, PEKK, PEKK-CF, PETG, PLA, PP, PP-GF, PPS, PPSU, TPU, TPC, ULTEM 9085 |
| Open for 3rd party materials | |
Support Materials | BVOH, Lye-Soluble Filament Open for 3rd party materials |
Extruders | Up to 4 Direct Synchronized Extruders (DSX) Interchangeable hotend with 0.4mm, 0.6mm, 1.0mm nozzles. |
Layer Heights | From 0.05mm Other layer heights supported through slicer software |
Nozzle Temperature | Up to 450 °C (842 °F) |
Print Bed Temperature | Up to 180 °C (356 °F) |
Build Chamber Temperature | Up to 180°C (356 °F) |
Print Speed | Throughput |
|
Position Accuracy | < 0.05mm in XY |
Printer Weight | Approx. 1980 kg (4365 lbs) |
Size | x 2550 y 1950 z 1920 mm (x 100.4 y 76.8 z 75.6 in) |
Power | 400 V, 32 A |
