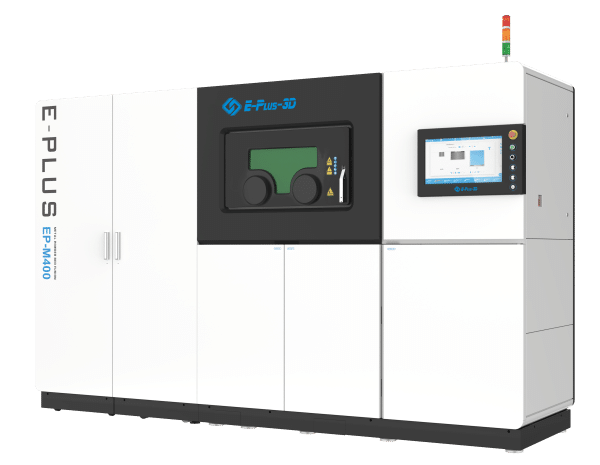

EP-M400 Metal 3D Printer

Large-Scale Metal 3D Printing with Precision and Ease

Eplus3D is introducing the EP-M400, a remarkable addition to their successful line of MPBF multi-laser 3D printers, featuring a spacious build chamber of 400 x 400 x 450 mm. The EP-M400 is a cutting-edge metal printer that enables the cost-effective production of large, high-quality metallic components on an industrial scale, all without the need for additional tools.

With the flexibility of choosing between single laser, dual laser, or four lasers, the EP-M400 combines efficiency, top-notch production quality, and unwavering reliability. Its user-friendly operation and seamless integration into the additive manufacturing ecosystem ensure that EP-M400 owners maintain a competitive edge in their respective industries.

Related documents

Specifications

Machine Model

EP-M400

Build Chamber (XxYxZ)

400 x 400 x  450 mm (15.75 x 15.75 x 17.72 in)(height incl. build plate)

Optical System

Fiber Laser 500 W / 2 x 500 W / 4 x 500 W

Spot Size

70~120 µm

Max Scan Speed

8 m/s

Layer Thickness

Up to 190 cm³/h

Theoretical Printspeed

20~120 μm

Material

Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc

Substrate heating

-

Power Supply

380 V, 31 A,16.5 kW, 50/60 Hz

Gas Supply

Ar / N₂

Forming chamber oxygen content

≤100 ppm

Dimension (WxDxH)

4300 x 1400 x 2830 mm

Weight

5000 kg

Software

EP Control, EP-Hatch

Input Data Format

STL file or Other Convertible File
